• Bright front bumper
• Bright rear bumper
• Front air dam
• Bright grille
• Body color upper front fascia
• Halogen headlamps
• Fold-away pwr heated mirrors
• Tinted glass
• Variable speed intermittent windshield wipers
• Cargo lamp

• Cloth 40/20/40 split bench seat
• Stain & odor resistant, anti-static seat fabric
• Rear folding bench seat
• Mini floor console
• Carpeted floor covering
• Front/rear floor mats
• Floor tunnel insulation
• 4-spoke steering wheel
• Tilt steering column
• Sentry Key theft deterrent system
• Instrument cluster-inc: 120 MPH primary speedometer, tachometer
• Tire pressure monitoring system
• Pwr windows w/driver one-touch down
• Rear sliding window
• Pwr locks
• Remote keyless entry
• Pwr accessory delay
• Speed control
• Security alarm
• AM/FM stereo w/CD player-inc: (4) speakers, aux input jack
• Fixed long mast antenna
• Air conditioning
• 12V pwr outlet
• Cigar lighter
• Color-keyed instrument panel bezel
• Overhead console w/trip computer
• Passenger assist handle
• Passenger side visor vanity mirror
• Rear underseat compartment storage
• Child safety rear door locks

• Pwr 4-wheel anti-lock disc brakes
• "Next Generation" front airbags
• Front height adjustable shoulder belts
• Dual note horn

5.7L (350) SMPI V8 HEMI ENGINE

• (STD)

• Quick Order Package 26G SLT
• 3.73 Axle Ratio
• 17" x 8" Chrome Clad Aluminum Wheels
• Anti-Spin Differential Rear Axle
• Leather Trim 40/20/40 Bench Seat
• 17" x 8" Forged Aluminum Wheels
• Cloth 40/20/40 Split Bench Seat
• Folding Flat Load Floor Storage
• AM/FM Compact Disc w/SIRIUS Satellite
• Clearance Lamps
• HD Snow Plow Prep Group
• SIRIUS Satellite Radio
• Trailer Tow Group
• Rear 60/40 Split Folding Seat
• Front Center Seat Cushion Storage
• 750 Amp Maintenance Free Battery
• Transfer Case Skid Plate Shield
• Tip Start
• 160 Amp Alternator
• Badge
• 40/20/40 Split Bench Seat
• Rear Folding Seat
• Mini Floor Console
• Hood Insulation
• Front Air Close Out Panel
• Electronically Controlled Throttle
• Next Generation Engine Controller
• Class IV Receiver Hitch
• 7 Pin Wiring Harness
• Stain Repel Seat Fabric
• 4 Speakers
• Speed-Sensitive Wipers
• Front beverage holders
• Variably intermittent wipers
• Tilt steering wheel
• Rear step bumper
• Power steering
• Passenger door bin
• Low tire pressure warning
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• CD player
• ABS brakes
• Voltmeter
• Tachometer
• Front Center Armrest
• Air Conditioning
• 4-Wheel Disc Brakes
• AM/FM radio: SIRIUS
• Compass
• Trip computer
• Speed control
• Remote keyless entry
• Power windows
• Power door mirrors
• Passenger vanity mirror
• Panic alarm
• Overhead console
• Outside temperature display
• Illuminated entry
• Heated door mirrors
• Front reading lights
• Front fog lights
• Bumpers: chrome
• Alloy wheels

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6010
• Curb Weight - Front (lbs): 3462
• Curb Weight - Rear (lbs): 2568
• Gross Vehicle Weight Rating Cap (lbs): 8800
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 880
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10550
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2638
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2200
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x 1.39
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 1.18
• Tires
• Front Tire Order Code: TT3
• Rear Tire Order Code: TT3
• Spare Tire Order Code: TBB
• Front Tire Size: LT265/70R17E
• Rear Tire Size: LT265/70R17E
• Spare Tire Size: LT265/70R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: 657
• Revolutions/Mile @ 45 mph - Rear: 657
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 227.7
• Width, Max w/o mirrors (in): 79.6
• Height, Overall (in): 78.9
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 48.0
• Front Bumper to Back of Cab (in): 142.9
• Cab to Axle (in): 36.8
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 41.8
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 7.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 65.1
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 57.5
• Ext'd Cab Cargo Volume (ft³): 56.7
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 65.0
• Second Head Room (in): 40.0
• Second Leg Room (in): 36.7
• Second Shoulder Room (in): 66.5
• Second Hip Room (in): 65.3
• Summary

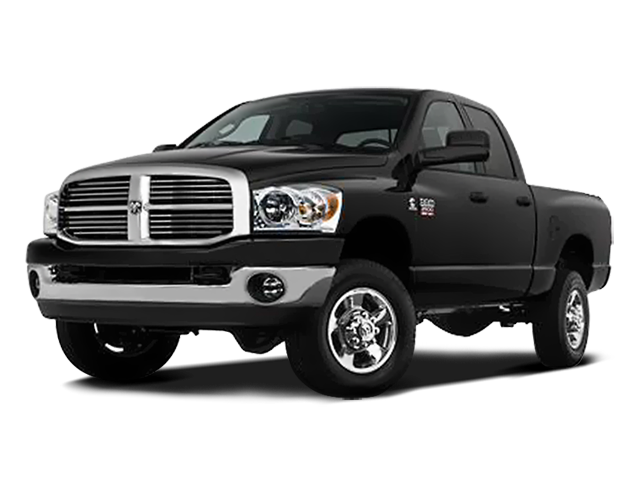

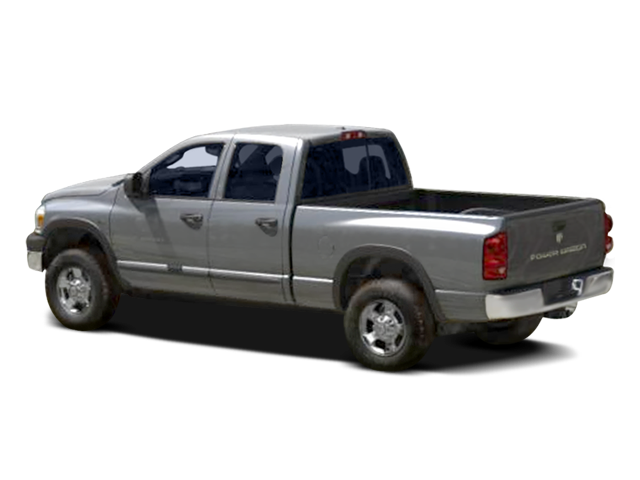

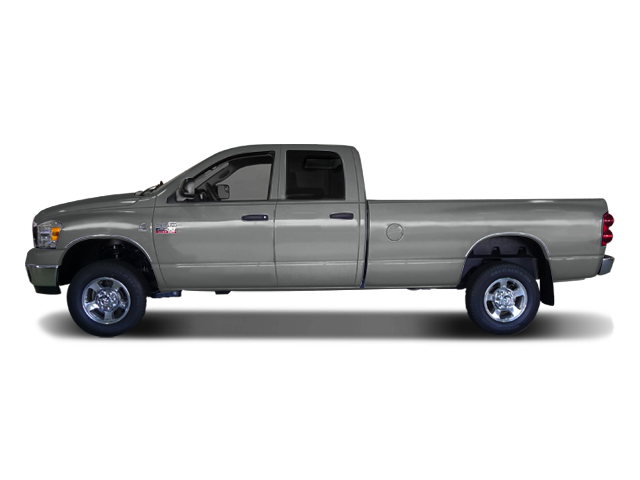

• Vehicle Name: Dodge Ram 2500
• Body Style: Quad Cab 6'6" Box
• Body Code: 140.5" WB
