• Wheels 16" x 6.5" (40.6 cm x 16.5 cm) steel (Only available with (R04) single rear wheel configuration.)
• Tires, front LT245/75R16E all-season, blackwall (Included and only available with CG33503 or CG33803 and (C4M) 9900 lbs. (4490 kg.) GVWR or (JFF) 10,100 lbs. (4581 kg.) GVWR. Jack and spare tire equipment bracket are not included.)
• Tires, rear LT245/75R16E all-season, blackwall (Included and only available with CG33503 or CG33803 and (C4M) 9900 lbs. (4490 kg.) GVWR or (JFF) 10,100 lbs. (4581 kg.) GVWR. Jack and spare tire equipment bracket are not included.)
• Wheel configuration, rear, single (Standard on CG33503 model. Available on CG33803 model. Not available with (9N2) 10,050 lbs. (4559 kg.) or (C7N) 12,300 lbs. (5579 kg.) GVWR.)
• Bumper, front painted Black with step-pad (Deleted when (ZR7) Appearance Package or (YF1) RV Package is ordered.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Flasher, heavy duty light emitting diode (LED), formerly known as SEO (8H9)
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (UM7) AM/FM stereo, (U1C) AM/FM stereo with CD player, (US8) AM/FM stereo with CD/MP3 player, (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UL5) radio delete.)

• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim
• Air conditioning, single-zone manual
• Seats, front bucket with vinyl trim and outboard head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats.)
• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Heater and defogger with front and side window defoggers
• Defogger, side windows
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, interior with dome light and door handle-activated switches

• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels. Not available with CG33803 models or CG33903 models.)

1WT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

GVWR, 9900 LBS. (4490 KG)

• (STD)

ENGINE, VORTEC 4.8L V8 SFI

• (285 hp [212.5 kW] @ 5400 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) Includes external engine oil cooler.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

EMISSIONS OVERRIDE, FEDERAL

• (for vehicles ordered by dealers in Federal emission states with (YF5) or (NE1) emissions - Not required for vehicles being shipped to California
• Connecticut
• Delaware
• Maine
• Maryland
• Massachusetts
• New Jersey
• New York
• Oregon
• Pennsylvania
• Rhode Island
• Vermont or Washington)

WHEELS 16" X 6.5" (40.6 CM X 16.5 CM) STEEL

• (STD)

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan
• digital clock and 2 front door speakers

TIRES, FRONT LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

TIRES, REAR LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

BODY, STANDARD

• (STD)

• 16' X 6.5' Steel Wheels
• 3.42 Rear Axle Ratio
• 9,900 lbs (4,490 Kgs) GVWR
• AM/FM Stereo with Digital Clock
• Black Outside Manual Mirrors
• Body Soft-Mount Donut and Bolt
• CT/DE/ME/MD/MA/NJ/NY/OR/PA/RI/VT/WA Emissions Requirements
• Driver and Front Passenger High-Back Bucket Seats
• Driver-Side Only Frontal Air Bag
• Federal Emissions Override
• Front LT245/75R16E AS BW Tires
• Heavy Duty Electronic 6-Speed Automatic Transmission with Overdrive
• Manual Day/night Inside Rearview Mirror
• Medium Pewter
• Rear LT245/75R16E AS BW Tires
• Reclining High-Back Bucket Seats with Inboard Armrests
• SEO: 3-Gallons Additional Fuel
• Single Rear Wheel Configuration
• Summit White
• Vortec 4.8L V8 SFI Engine
• Convenience Package
• Preferred Equipment Group 1WT
• 12V power outlets 2 12V power outlets
• 16' X 6.5' Steel Wheels
• 2 Speakers
• 4-Wheel Disc Brakes
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• Alternator Type Alternator
• AM/FM Stereo w/Digital Clock
• Antenna Fixed audio antenna
• Armrests front driver Driver seat armrest
• Armrests front passenger Front passenger seat armrest
• Auto headlights Auto on/off headlight control
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Lead acid battery
• Beverage holders Front beverage holders
• Body panels Fully galvanized steel body panels with side impact beams
• Body Soft-Mount Donut & Bolt
• Brake type 4-wheel disc brakes
• Bumpers front Black front bumper
• Climate control Manual climate control
• Clock Digital clock
• Corrosion perforation warranty 72 month/100,000 miles
• Cruise Control
• Cruise control Cruise control with steering wheel mounted controls
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door locks Manual door locks
• Door mirror style Black door mirrors
• Door mirror type Standard style side mirrors
• Drive type Rear-wheel drive
• Driver & Front Passenger High-Back Bucket Seats
• Driver door bin
• Driver information center
• Driver seat direction Driver seat with 4-way directional controls
• Driver-Side Only Frontal Airbag
• Driver's Seat Mounted Armrest
• Dual front impact airbags
• Electronic Stability Control
• Electronic stability control Electronic stability control system
• Emissions Federal emissions
• Emissions tiers Tier 2 Bin 8 emissions
• Engine block material Iron engine block
• Engine Configuration Vortec V8
• Engine cooler Engine oil cooler
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Vortec 4.8L V-8
• Engine Vortec 4.8L V-8 variable valve control, regular unleaded, engine with 285HP
• Engine/electric motor temperature gauge
• First-row windows Manual first-row windows
• Floor console Partial floor console
• Floor console storage
• Floor coverage Front floor coverage
• Floor covering Front vinyl floor covering
• Folding door mirrors Manual folding door mirrors
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders
• Front Bucket Seats
• Front head restraints Fixed front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front seat upholstery Cloth front seat upholstery
• Front seatback upholstery Cloth front seatback upholstery
• Front wheel independent suspension
• Fuel Type Regular unleaded
• Fully automatic headlights
• Gearshifter material Urethane gear shifter material
• Grille style Black grille
• Headlight type Sealed beam headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Front headliner coverage
• Headliner material Cloth headliner material
• Ignition Spark ignition system
• Ignition type Mechanical
• Immobilizer
• Instrumentation display Analog instrumentation display
• Key in vehicle warning
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Low level warnings Low level warning for fuel
• Low tire pressure warning
• Low tire pressure warning Tire specific low air pressure warning
• Maintenance warranty 24 month/24,000 miles
• Manual Day/Night Inside Rear-View Mirror
• Manual driver seat controls Driver seat manual reclining and fore/aft control
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Number of airbags 2 airbags
• Number of doors 2 doors
• Oil pressure gauge
• Overdrive transmission
• Paint Non-metallic paint
• Passenger cancellable airbag
• Passenger door bin
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger seat mounted armrest
• Power steering
• Powertrain type ICE
• Powertrain warranty 60 month/100,000 miles
• Radiator
• Radio AM/FM
• Rear Springs Regular grade rear springs
• Reclining High-Back Bucket Seats
• Reclining High-Back Bucket Seats w/Inboard Armrests
• Roadside warranty 60 month/100,000 miles
• Running lights Daytime running lights
• Seating capacity 2
• Seek scan
• Selectable mode transmission
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Speakers number 2 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Split front seats Bucket front seats
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Sun visor strip
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailpipe Partial stainless steel single exhaust
• Tilt Steering Wheel
• Tinted windows Light tinted windows
• Tires LT245/75SR16 AS BSW front and rear tires
• Traction control
• Traction control All-speed ABS and driveline traction control
• Transmission 6-speed automatic
• Transmission electronic control
• Transmission oil cooler Heavy-duty transmission oil cooler
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front ventilated disc brakes
• Vinyl Seat Trim
• Voltmeter
• Wheel covers Wheel hub covers
• Wheels 16 x 6.5-inch front and rear gray steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 13.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2993
• Curb Weight - Rear (lbs): 1503
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 139.00
• Length, Overall w/o rear bumper (in): 246.70
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 80.00
• Cab to End of Frame (in): 148.50
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.80
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 6.80
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

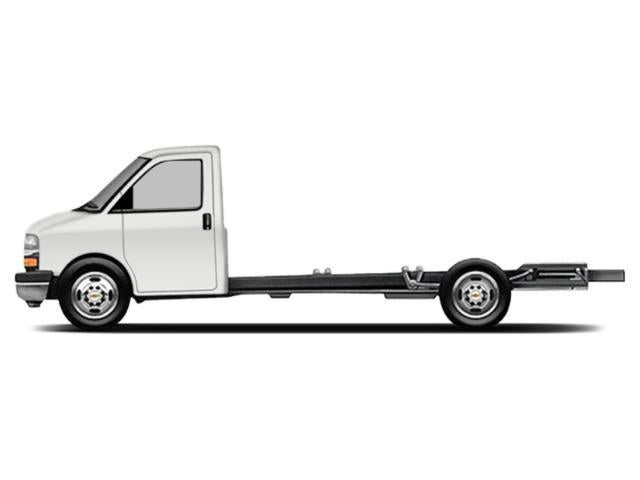

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 139.0" WB
• Body Code: ZW9
