• Wheels: 17" Argent Painted Steel -inc: painted hub covers/center ornaments
• Tires: LT245/75Rx17E BSW A/S (4)
• Regular Box Style
• Wheels w/Hub Covers
• Steel Spare Wheel
• Full-Size Spare Tire Stored Underbody w/Crankdown
• Black Front Bumper w/Black Rub Strip/Fascia Accent and 2 Tow Hooks
• Black Rear Step Bumper
• Black Side Windows Trim and Black Front Windshield Trim
• Black Door Handles
• Black Manual Side Mirrors w/Manual Folding
• Manual Extendable Trailer Style Mirrors
• Fixed Rear Window
• Light Tinted Glass
• Variable Intermittent Wipers
• Aluminum Panels
• Black Grille
• Front License Plate Bracket
• Tailgate Rear Cargo Access
• Manual Tailgate/Rear Door Lock
• Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off
• Cargo Lamp w/High Mount Stop Light

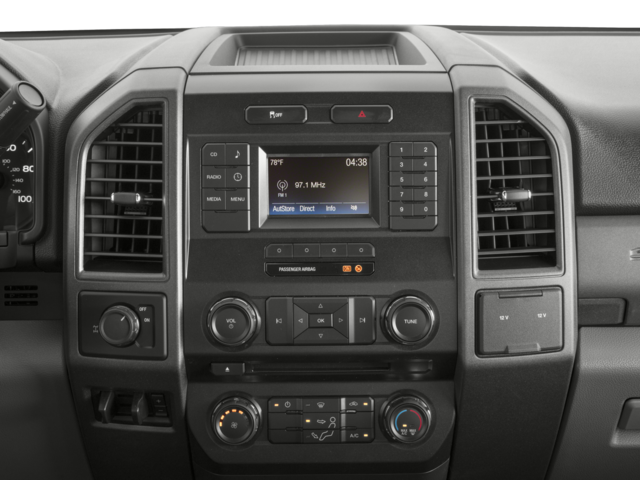

• Radio: AM/FM Stereo -inc: digital clock and 6-speakers
• Radio w/Clock
• Fixed Antenna
• 6 Speakers
• 1 LCD Monitor In The Front

• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement

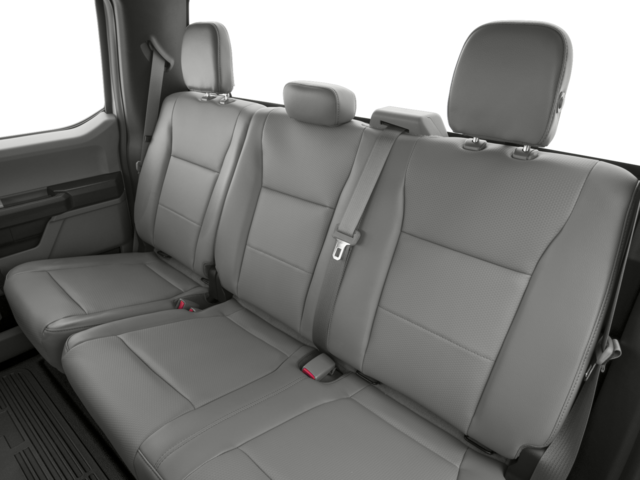

• 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
• Manual Tilt/Telescoping Steering Column
• Manual Rear Windows
• Front Cupholder
• Manual Air Conditioning
• HVAC -inc: Underseat Ducts
• Locking Glove Box
• Interior Trim -inc: Chrome Interior Accents
• Full Cloth Headliner
• Urethane Gear Shifter Material
• HD Vinyl 40/20/40 Split Bench Seat -inc: center armrest, cupholder, storage and driver's side manual lumbar
• Day-Night Rearview Mirror
• Passenger Visor Vanity Mirror
• 2 12V DC Power Outlets
• Full Overhead Console w/Storage and 2 12V DC Power Outlets
• Front And Rear Map Lights
• Full Vinyl/Rubber Floor Covering
• Instrument Panel Covered Bin and Dashboard Storage
• Manual 1st Row Windows
• Driver Information Center
• Trip Computer
• Outside Temp Gauge
• Analog Appearance

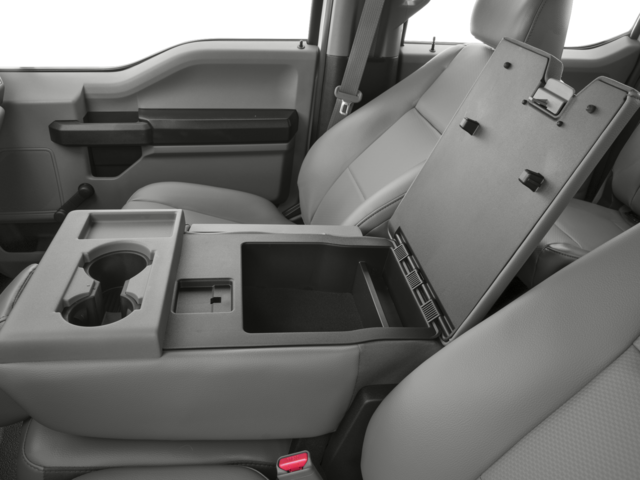

• Front Center Armrest w/Storage
• Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Air Filtration

• Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• ABS And Driveline Traction Control
• Side Impact Beams
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Tire Specific Low Tire Pressure Warning
• Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
• Safety Canopy System Curtain 1st And 2nd Row Airbags
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point and Height Adjusters
• Dual Stage Driver And Passenger Front Airbags
• Rear Child Safety Locks
• Back-Up Camera

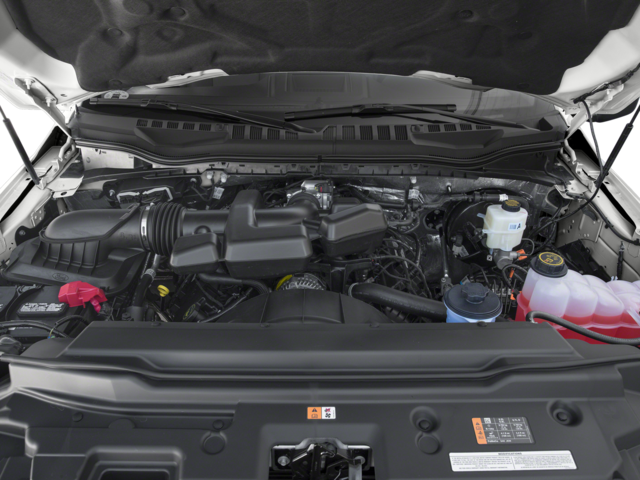

ENGINE: 6.2L 2-VALVE SOHC EFI NA V8 FLEX-FUEL

• Flex-Fuel badge on fleet orders only (STD)

• GVWR: 10,000 lb Payload Package
• Air Conditioning
• Power steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Overhead airbag
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Delay-off headlights
• Fully automatic headlights
• Rear step bumper
• Front reading lights
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Rear reading lights
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Split folding rear seat
• Variably intermittent wipers
• 3.73 Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 650
• Maximum Alternator Capacity (amps): 157
• Weight Information
• Base Curb Weight (lbs): 6060
• Gross Axle Wt Rating - Front (lbs): 4250
• Gross Axle Wt Rating - Rear (lbs): 6340
• Curb Weight - Front (lbs): 3456
• Curb Weight - Rear (lbs): 2604
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 19500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1290
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3225
• Maximum Trailering Capacity (lbs): 12900
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4250
• Spring Capacity - Rear (lbs): 6340
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 5250
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6390
• Rear Tire Capacity (lbs): 6390
• Revolutions/Mile @ 45 mph - Front: 645
• Revolutions/Mile @ 45 mph - Rear: 645
• Wheels
• Front Wheel Size (in): 17 X 7.5
• Rear Wheel Size (in): 17 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 54.7
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Exterior Dimensions
• Wheelbase (in): 160
• Length, Overall (in): 250
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 78.3
• Overhang, Front (in): 38.2
• Cab to Axle (in): 39.9
• Ground to Top of Load Floor (in): 35.3
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.9
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 65.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary
• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: SD Crew Cab
• Body Code: T
